Product Description

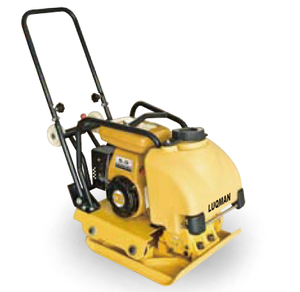

Plate compactors ideal for compacting granular soils such as gravel, sand, stone dust and 2A aggregates (sandy gravel). They can also be used on cobblestones and paving blocks
●Gasoline ( Petrol) or Diesel Engine could be choice
● Orignal Robin ,Loncin ,Honda ,Lifan ,BRIGGS & STRATTON ...excellent brand engines optional
● With or Without Water Tank optional
● Ductile iron plate provides better durability
● Open plate provides self cleaning
● Radius based plate for easy access to corners
● Centrally located lifting bar allows easy transportation
●Seled belt cover to prevent sand and soil in
● Built -in wheel for easy transportation
● Throttle control is available as optional
●12 / 18 /24 Months Quality Warranty Grade
| Model | YC-90 |
| Plate size L*W(mm) | 560*450 |
| Travel speed(m/min) | 15-20 |
| Limited grade ability | 20 |
| Vibration Frequency vpm(Hz) | 5600 |
| Centrifugal force(KN) | 13 |
| Engine model Option | Honda GX160@4.1kw(5.5HP) 4 cycle Gasoline Engine |
| Robin EY20-3C@3.7kw(5HP) 4 cycle Gasoline Engine | |
| Locin G160F@4.1kw(5.5HP) 4 cycle Gasoline Engine | |
| Diesel Engine D173F@4.4kw(6.0HP) | |
| Starting system | Recoil starter |
| Packing size(L*W*H)mm | 580*470*650 |
| Net weight(KG) | 80 |
